Description

Basic Info

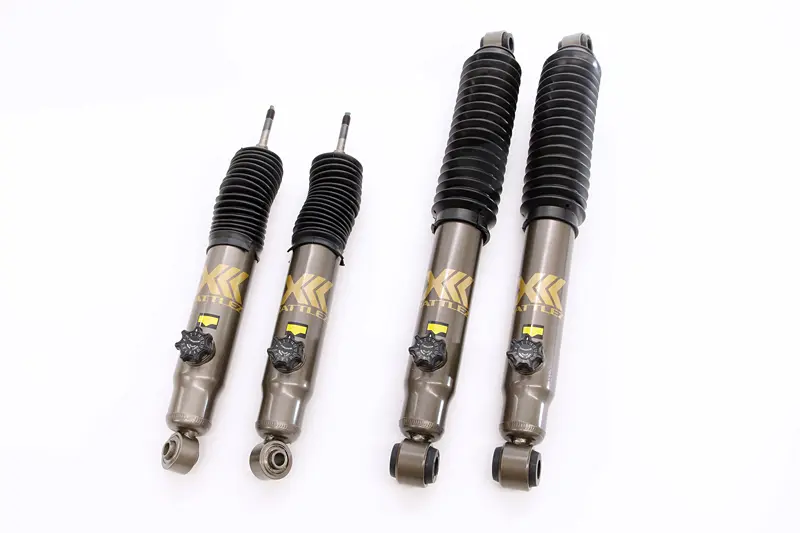

The “BATTLEZ Damper VFA” enhances ride comfort and maneuverability. A “32-step needle adjustment” is used to adjust the damping force of the front damper, making it possible to make finer settings than conventional dial adjustment.

Product Contents	Front Damper, Rear Damper, Front Bump Stopper

shock absorber.

type	Front: Low-pressure gas-powered twin-tube damper Rear: Low-pressure gas-powered twin-tube damper, harmofleck ® mechanism
Damping force adjustment	Front: 32-step needle adjustable, Rear: 14-step dial adjustable
Damping force	Front: Rebound side -6 to 29%, pressure side -21 to 80% (0.3 m/sec / stock ratio) Rear: Rebound side -17 to 3%, pressure side -19 to 14% (0.3 m / sec / stock ratio)
stroke	Front: +12mm, Rear: -5mm
Body Diameter	Front: 50.8Φ, Rear: 54.0Φ
Piston diameter	Front: 35.0Φ, Rear: 30.0Φ
color	Grey Metallic

Other

substance	Adjustment dial position Front: In the engine compartment Rear: In the wheelhouse (damper body)

Mounting Information

Mounting method	Genuine replacement (genuine upper mount diversion)
Mounting time	2.5~3.0 hours

Precautions and supplementary explanations

* As of December 2023, there may be a significant delay from the indicated delivery date.

・Grades that cannot be installed: PHV vehicles, Adventure “OFFROAD package”, Adventure “OFFROAD package II.”

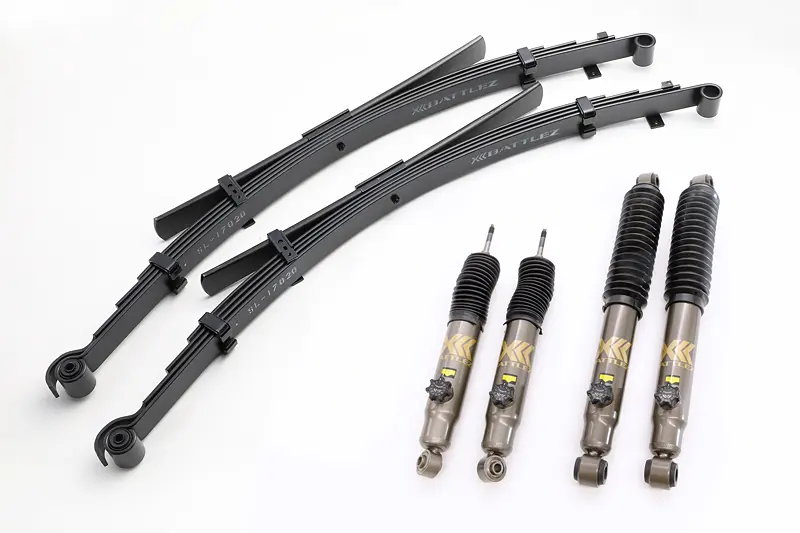

* Adventure “OFFROAD package” can be installed in the case of a lift-up set (A732125).

The harmofleck ® mechanism is only at the rear.
